The CSS Painting API allows you to create custom values for paint() which can be used in background-image to set custom backgrounds on an element.
To create a dynamic background image, the you need the following HTML, CSS, and JS:
.painted {
background-image: paint(myPaintedBackground);
}
<body class="painted">
<!-- content -->
</body>
// main.js
CSS.paintWorklet.addModule('/paintWorklet.js');
// paintWorklet.js
registerPaint('myPaintedBackground', class {
paint(ctx, geom, properties) {
// pattern
}
};
With the basics in place, next step is to fill in the paint method with the logic to draw the pattern. This has a canvas like API and you can draw shapes, lines, etc.
To create the pattern you see on this site, I used the following code. I didn't get it on my first try, it took some tweaking to get it to look just right.
// paintWorklet.js
registerPaint('myPaintedBackground', class {
paint(ctx, geom, properties) {
const shapes = ['circle', 'rectangle', 'line'];
// Subtle color palette
const colors = ['#2e1065', '#022c22', '#1f2937', '#44403c'];
// Make the number of shapes relative to the height of the element
const maxShapes = geom.height / 3;
for (let i = 0; i < maxShapes; i++) {
// Get random color, shape, position, size, etc
const color = colors[Math.floor(Math.random() * colors.length)];
const shape = shapes[Math.floor(Math.random() * shapes.length)];
const x = Math.random() * geom.width;
const y = Math.random() * geom.height;
const size = Math.random() * 15 + 1;
const rotation = Math.random() * 180 + 1;
var direction = Math.random() < 0.5 ? -1 : 1;
// Draw the shape
ctx.fillStyle = color;
ctx.beginPath();
if (shape === 'circle') {
// Circle
ctx.arc(x, y, size / 2, 0, 2 * Math.PI);
} else if (shape == 'rectangle') {
// Rotated rectangle
ctx.rotate((rotation * direction * Math.PI) / 180);
ctx.rect(x, y, size, size);
ctx.setTransform(1, 0, 0, 1, 0, 0);
} else if (shape == 'line') {
// Rotated line
ctx.rotate((rotation * direction * Math.PI) / 180);
ctx.rect(x, y, size / 3, size * 2);
ctx.setTransform(1, 0, 0, 1, 0, 0);
}
// Close out the shape
ctx.fill();
}
}
};

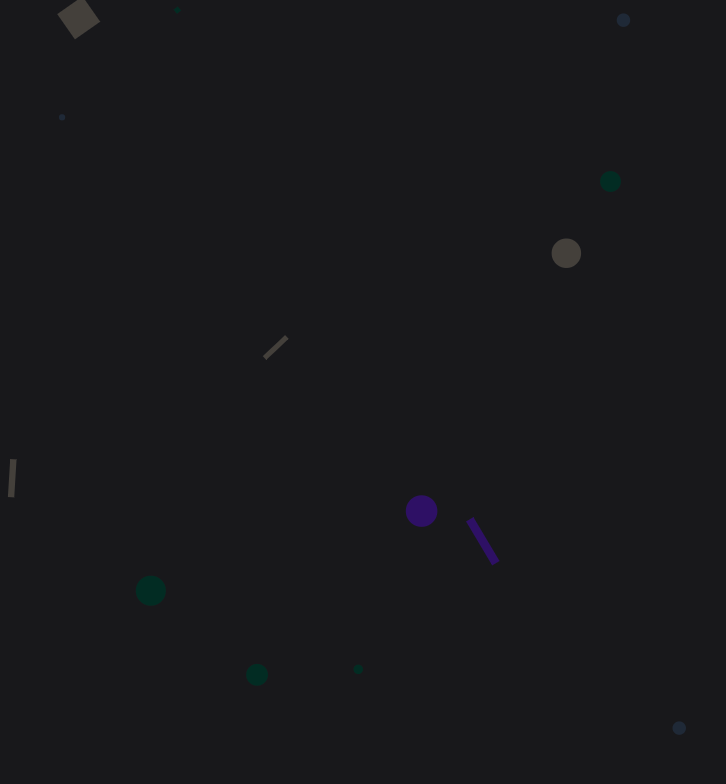

Turned out pretty good!
Except on safari.
CSS Painting API is experimental and does not work in Safari. But I want mobile viewers to see this fancy background too!
To get around this, I used the same JS class to generate the pattern, pulled the image out using toDataUrl, then set that as the background:
if ("paintWorklet" in CSS) {
CSS.paintWorklet.addModule("/paintWorklet.js");
} else {
// Paint worklet not supported, use canvas directly
let canvas = document.createElement('canvas');
canvas.width = window.innerWidth;
canvas.height = window.innerHeight;
let ctx = canvas.getContext('2d');
let cp = new CirclesPainter;
cp.paint(ctx, {width: canvas.width, height: canvas.height});
let url = canvas.toDataURL();
document.body.style.backgroundImage = `url(${url})`;
}
This means I needed to load the paintWorklet.js outside of using the CSS.paintWorklet.addModule method. I did this by adding the script tag to the HTML:
<script src="paintWorklet.js"></script>
In the end, the full code looks like this:
<!-- index.html -->
<head>
<link rel="stylesheet" href="main.css" />
<script src="paintWorklet.js"></script>
<script src="main.js"></script>
</head>
<body class="painted">
<!-- content -->
</body>
/* main.css */
.painted {
background-image: paint(myPaintedBackground);
}
// main.js
document.addEventListener('DOMContentLoaded', function(){
if ("paintWorklet" in CSS) {
CSS.paintWorklet.addModule("/paintWorklet.js");
} else {
let canvas = document.createElement('canvas');
canvas.width = window.innerWidth;
canvas.height = window.innerHeight;
let ctx = canvas.getContext('2d');
let p = new MyPainter();
p.paint(ctx, {width: canvas.width, height: canvas.height});
let url = canvas.toDataURL();
let el = document.body;
el.style.backgroundImage = `url(${url})`;
}
}, false);
// paintWorklet.js
class MyPainter {
paint(ctx, geom) {
const colors = ["#2e1065", "#022c22", "#1f2937", "#44403c"]; // Subtle color palette
const shapes = ["circle", "rectangle", "line"];
const maxShapes = geom.height / 3;
for (let i = 0; i < maxShapes; i++) {
const color = colors[Math.floor(Math.random() * colors.length)];
const shape = shapes[Math.floor(Math.random() * shapes.length)];
const x = Math.random() * geom.width;
const y = Math.random() * geom.height;
const size = Math.random() * 15 + 1;
const rotation = Math.random() * 180 + 1;
var direction = Math.random() < 0.5 ? -1 : 1;
ctx.fillStyle = color;
ctx.beginPath();
if (shape === "circle") {
ctx.arc(x, y, size / 2, 0, 2 * Math.PI);
} else if (shape == "rectangle") {
// rectangle
ctx.rotate((rotation * direction * Math.PI) / 180);
ctx.rect(x, y, size, size);
ctx.setTransform(1, 0, 0, 1, 0, 0);
} else if (shape == "line") {
// rectangle
ctx.rotate((rotation * direction * Math.PI) / 180);
ctx.rect(x, y, size / 3, size * 2);
ctx.setTransform(1, 0, 0, 1, 0, 0);
}
ctx.fill();
}
}
}
if (typeof registerPaint === "function") {
registerPaint("myPaintedBackground", MyPainter);
}
